Description

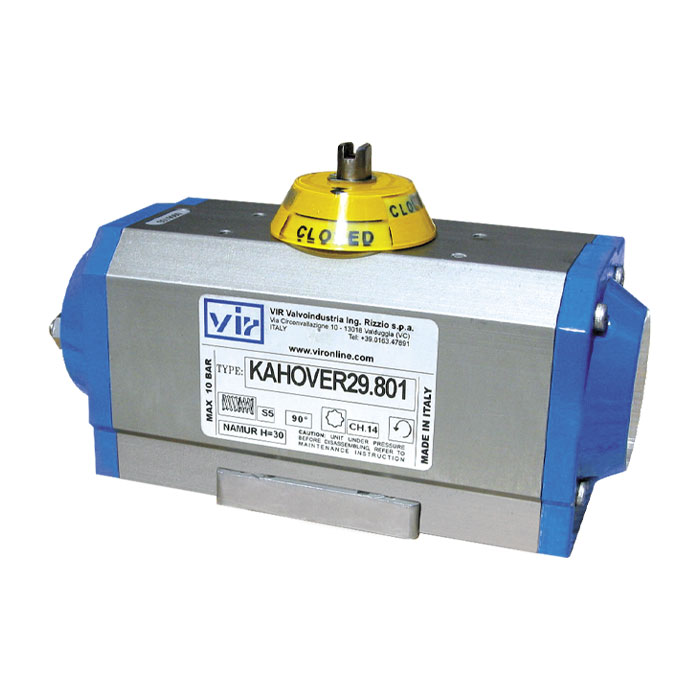

Pneumatic actuator with ISO 5211 connection
Anodized aluminum body, nickel plated steel pinion
Flange, end caps and pistons in die cast aluminum
Steel coated springs with technopolymer cartridge
Torque range (at 6bar air supply):
● Up to 3800Nm for double effect versions
● Up to 1400Nm for spring return versions
Optional solenoid valve and limit switch box available
Allow opening/closing ±10° travel regulation
NAMUR VDI/VDE 3845 upper connection for accessories
NAMUR VDI/VDE 3845 connection for solenoid valve
ISO228/1 ¼” connection for supply fluid
Allowable supply fluid pressures from 1bar to 10bar
Working conditions: -20°C to +80°C
Downloads
Codes
Hovercraft - Double acting version
| VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
|---|---|---|---|---|
| KAHOVER15.801 | - | 1 | 1830 | 1.8 |
| KAHOVER16.801 | - | 1 | 2350 | 2.4 |
| KAHOVER17.801 | - | 1 | 2870 | 2.9 |
| KAHOVER18.801 | - | 1 | 4000 | 4 |
| KAHOVER19.801 | - | 1 | 4840 | 4.8 |
| KAHOVER21.801 | - | 1 | 9030 | 9 |
| KAHOVER22.801 | - | 1 | 12460 | 12.5 |
| KAHOVER23.801 | - | 1 | 17800 | 17.8 |
| KAHOVER24.801 | - | 1 | 22180 | 22.2 |
| KAHOVER25.801 | - | 1 | 36300 | 36.3 |
| KAHOVER26.801 | - | 1 | 42800 | 42.8 |
| KAHOVER27.801 | - | 1 | 66800 | 66.8 |
Hovercraft - Spring return version
| VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
|---|---|---|---|---|
| KAHOVER29.801 | - | 1 | 2590 | 2.6 |
| KAHOVER30.801 | - | 1 | 3250 | 3.3 |
| KAHOVER31.801 | - | 1 | 4520 | 4.5 |
| KAHOVER32.801 | - | 1 | 5570 | 5.6 |
| KAHOVER34.801 | - | 1 | 10710 | 10.7 |
| KAHOVER35.801 | - | 1 | 15020 | 15 |
| KAHOVER36.801 | - | 1 | 22630 | 22.6 |
| KAHOVER37.801 | - | 1 | 27000 | 27 |
| KAHOVER38.801 | - | 1 | 45900 | 45.9 |
| KAHOVER39.801 | - | 1 | 52400 | 52.4 |
| KAHOVER40.801 | - | 1 | 82960 | 83 |
