Description

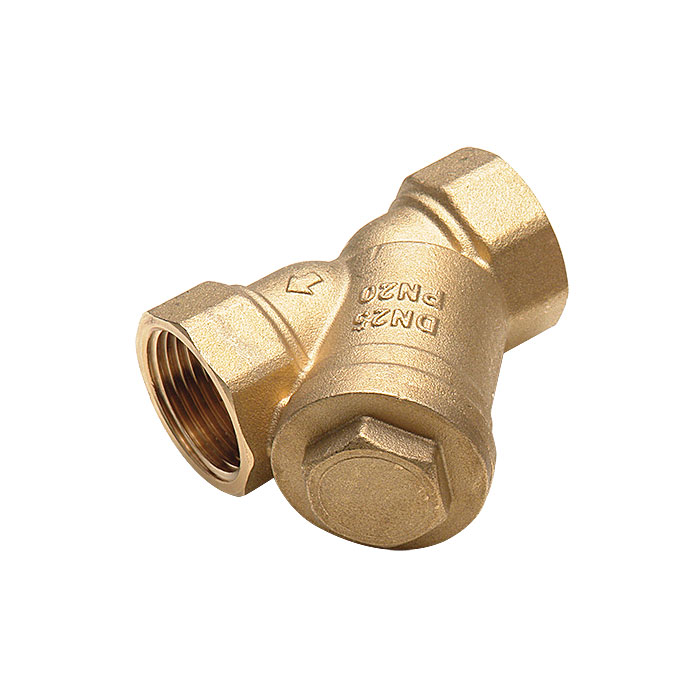

Brass strainer
Diameters from DN008 – ¼” to DN100 – 4″
Threaded F/F (ISO 228/1)
Stainless steel strainer
(Mesh 500μm for DN≤50, 600μm for DN65/DN80, 800μm for DN100)
PN20 (PN16 for DN100)
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
● Suitable for: water, 0°C to +80°C
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
Downloads
Codes
899I
| VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
|---|---|---|---|---|
| F8990Z008.62 | 008 - 1/4" | 1 | 115 | 0.1 |
| F8990Z010.62 | 010 - 3/8" | 1 | 95 | 0.1 |
| F8990Z015.62 | 015 - 1/2" | 1 | 135 | 0.1 |
| F8990Z020.62 | 020 - 3/4" | 1 | 205 | 0.2 |
| F8990Z025.62 | 025 - 1" | 1 | 300 | 0.3 |
| F8990Z032.62 | 032 - 1 1/4" | 1 | 580 | 0.6 |
| F8990Z040.62 | 040 - 1 1/2" | 1 | 800 | 0.8 |
| F8990Z050.62 | 050 - 2" | 1 | 1350 | 1.4 |
| F8990Z065.62 | 065 - 2 1/2" | 1 | 2300 | 2.3 |
| F8990Z080.62 | 080 - 3" | 1 | 3140 | 3.1 |
| F8990Z100.62 | 100 - 4" | 1 | 4710 | 4.7 |
