Description

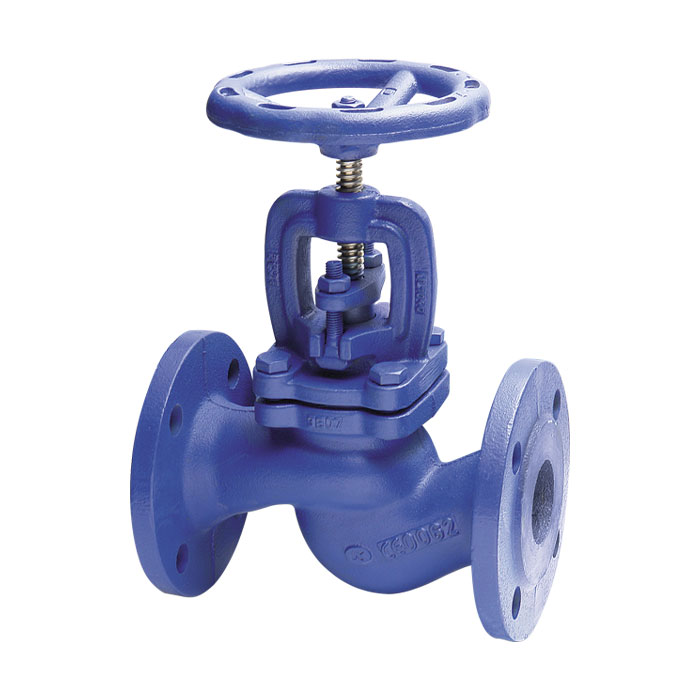

Cast iron globe valve
Diameters from DN015 – ½” to DN300 – 12″
Flanged PN16 according to EN1092-2 (ex DIN2533)
Testing according to EN12266-1
Lengths according to EN558-1 series 1 (ex DIN3202 F1)
TR CU 010 compliant
PN16
| -10°C-120 °C | 120°C-200 °C | 200°C-250°C | 250°C-300 °C |
| Max 16,0bar | Max 12,8bar | Max 11,2bar | Max 9,6bar |
Working conditions
● Suitable for: water, -10°C to +300°C
Downloads
Codes
1510
| VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
|---|---|---|---|---|
| F1510I015.1328 | 015 - 1/2" | 1 | 3300 | 3.3 |
| F1510I020.1328 | 020 - 3/4" | 1 | 3800 | 3.8 |
| F1510I025.1328 | 025 - 1" | 1 | 5100 | 5.1 |
| F1510I032.1328 | 032 - 1 1/4" | 1 | 6600 | 6.6 |
| F1510I040.1328 | 040 - 1 1/2" | 1 | 9500 | 9.5 |
| F1510I050.1328 | 050 - 2" | 1 | 12000 | 12 |
| F1510I065.1328 | 065 - 2 1/2" | 1 | 18500 | 18.5 |
| F1510I080.1328 | 080 - 3" | 1 | 23500 | 23.5 |
| F1510I100.1328 | 100 - 4" | 1 | 35800 | 35.8 |
| F1510I125.1328 | 125 - 5" | 1 | 53000 | 53 |
| F1510I150.1328 | 150 - 6" | 1 | 75000 | 75 |
| F1510I200.1328 | 200 - 8" | 1 | 140000 | 140 |
| F1510I250.1328 | 250 - 10" | 1 | 220000 | 220 |
| F1510I300.1328 | 300 - 12" | 1 | 330000 | 330 |
